bajaj logo

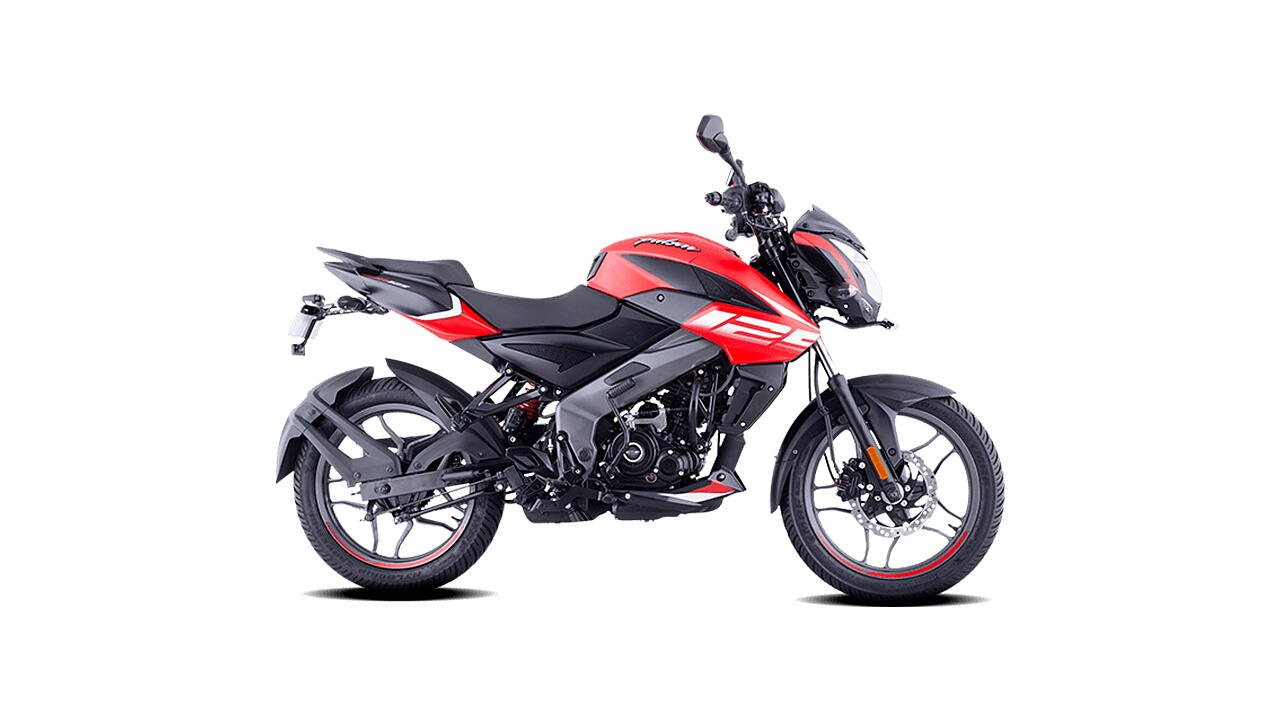

NS 125 Burnt red color

Pulsar NS 125

BS6+OBD2

Engine

124.45 cc

Max Power

12 PS @ 8500 rpm

Max Torque

11 Nm @ 7000 rpm

Variants Available

Technical Specifications of

Pulsar NS 125

Specifications

Model & Variants

Variants:

FI

Model Year:

From APR 2023

Emissions:

BS6+OBD2

Engine Specifications

Displacement:

124.45 cc

Idling Speed:

1300 +/- 100 rpm

Maximum Power:

12 PS @ 8500 rpm

Maximum Torque:

11 Nm @ 7000 rpm

Engine Type:

4 Stroke, Single Cylinder

Bore:

52 mm

Stroke:

58.6 mm

Engine Oil Grade:

20W50

Engine Oil Drain & Refill Qty:

1000 ml

Engine Oil Overhaul Qty:

1100 ml

Ignition System:

DC

Spark Plug Qty:

1 Nos

Spark Plug Gap:

0.7 - 0.8 mm

Cooling System:

Air-Cooled, Wet sump,Forced lubrication

Chassis & Suspension

Chassis Type:

Perimeter

Front Suspension:

Telescopic Suspension

Rear Suspension:

Mono suspension with Nitrox

Fork Oil Grade:

SAE 10W20 Bajaj Genuine Fork oil

Fork Oil Qty / Leg:

145 ml

Dimensions

Length:

2012 mm

Width:

810 mm

Height:

1078 mm

Ground Clearance:

178 mm

Wheel Base:

1352 mm

Vehicle Kerb Weight:

141 Kg

Vehicle Gross Weight:

291 Kg

Electricals

Headlight:

Halogen, 12 V 35/35W

Taillight:

LED

Battery:

12V 4Ah, VRLA

Starter:

Electric Start

Wheels & Tires

Front Tyre Size:

80/100-17

Rear Tyre Size:

100/90-17

Tyre Type:

Tubeless

Front Tyre Pressure:

25 PSI

Rear Tyre Pressure (single):

28 PSI

Rear Tyre Pressure (dubble):

32 PSI

Brakes

Front Brake:

Disc, 240 mm

Rear Brake:

Drum, 130 mm

CBS Availability:

Yes

ABS Availability:

No

ABS Channel:

No

Performance

Top Speed:

-

Acceleration:

-

Fuel Efficiency

Mileage:

45 to 50 kmpl

Fuel Tank Capacity:

12 Litres

Reserve:

No

Safety Features

Safety Features:

CBS

Other Features

Special Features:

Additional Features:

USB Socket:

Yes

Colors

Available Colors:

1. Fiery Orange, 2. Beach Blue 3. Burnt Red 4. Black+Grey

Fuel Injection (FI) Version | OBD2 | Model Year APR-2023
