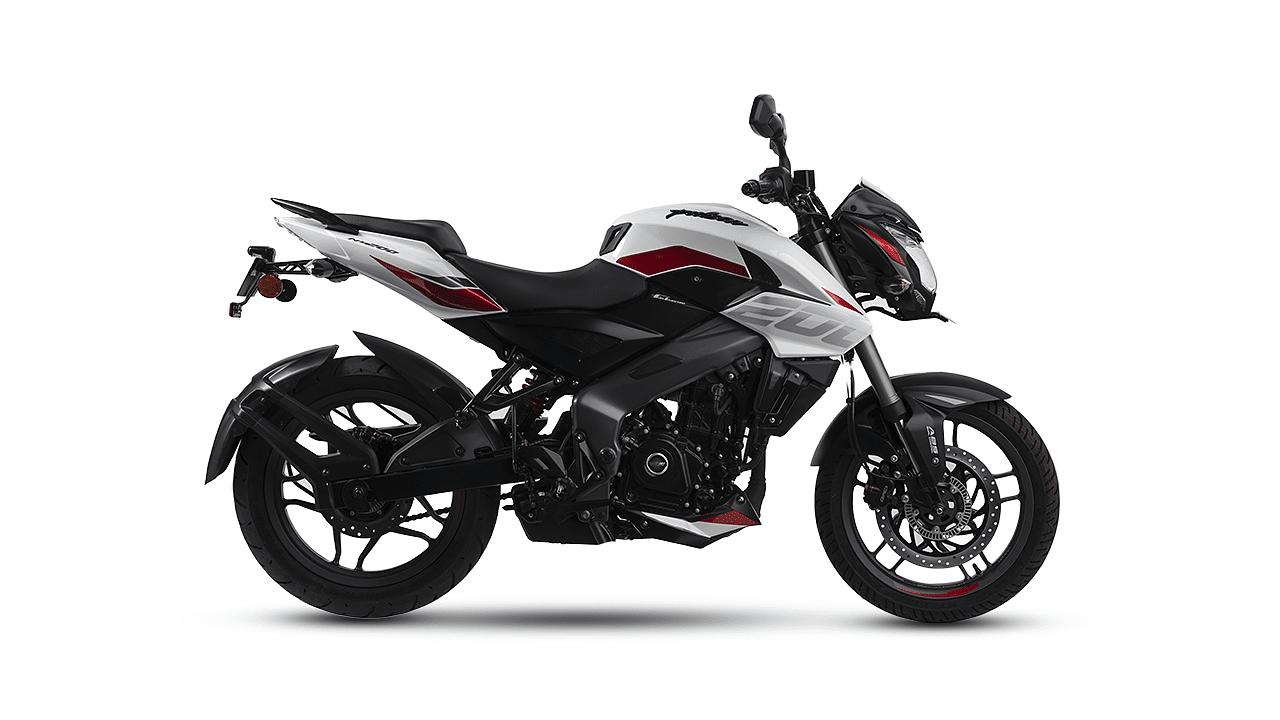

Pulsar NS 200 With USD Fork

BS6+OBD2

Engine

199.5 cc

Max Power

24.47 PS @ 8500 rpm

Max Torque

18.7 Nm @ 8000 rpm

Variants Available

Technical Specifications of

Pulsar NS 200 With USD Fork

Specifications

Model & Variants

Variants:

1. Single Channel ABS, 2. Dual Channel ABS

Model Year:

2023

Emissions:

BS6+OBD2

Engine Specifications

Displacement:

199.5 cc

Idling Speed:

1500 +/- 100 rpm

Maximum Power:

24.47 PS @ 8500 rpm

Maximum Torque:

18.7 Nm @ 8000 rpm

Engine Type:

4 Stroke, Single Cylinder

Bore:

72.0 mm

Stroke:

49.0 mm

Engine Oil Grade:

20W50

Engine Oil Drain & Refill Qty:

1200 ml

Engine Oil Overhaul Qty:

1400 ml

Ignition System:

DC, Fuel Injection

Spark Plug Qty:

3 Nos

Spark Plug Gap:

0.7 - 0.8 mm

Cooling System:

Liquid cooling

Chassis & Suspension

Chassis Type:

Perimeter

Front Suspension:

Upside Down (USD) Fork

Rear Suspension:

Mono Suspension with Nitrox

Fork Oil Grade:

SAE 10W20 Bajaj Genuine Fork oil

Fork Oil Qty / Leg:

145 ml

Dimensions

Length:

2017 mm

Width:

804 mm

Height:

1075 mm

Ground Clearance:

168 mm

Wheel Base:

1363 mm

Vehicle Kerb Weight:

159.5kg (single Channel ABS) | 158kg (Dual Channel ABS)

Vehicle Gross Weight:

309.5kg (single Channel ABS) | 308kg (Dual Channel ABS)

Electricals

Headlight:

12 V 55/60W

Taillight:

LED

Battery:

12V 8Ah VRLA

Starter:

Electric Start

Wheels & Tires

Front Tyre Size:

Rear Tyre Size:

Tyre Type:

Tubeless

Front Tyre Pressure:

25 PSI

Rear Tyre Pressure (single):

25 PSI

Rear Tyre Pressure (dubble):

32 PSI

Brakes

Front Brake:

Disc, 300 mm

Rear Brake:

Disc

CBS Availability:

No

ABS Availability:

Yes

ABS Channel:

Dual Channel

Performance

Top Speed:

-

Acceleration:

-

Fuel Efficiency

Mileage:

30-40 kmpl

Fuel Tank Capacity:

12 Litres

Reserve:

No reserve

Safety Features

Safety Features:

Dual Channel ABS

Other Features

Special Features:

Additional Features:

USB Socket:

No

Colors

Available Colors:

4
